Caracteristicas

Especificaciones

Uso: Filamento

Plástico procesado: ANIMAL DOMÉSTICO

Condición: nuevo

Diseño del tornillo: Monohélice

Material del tornillo: 38CrMoALA

Diámetro del tornillo (milímetros): 90

Ratio del tornillo L/D: 30:1

Velocidad del tornillo (RPM): 80 RPM

Ubicación de la sala de exposición: Ninguno

Voltaje: 380V

Dimensión (l*w*h): LOS 35M*6M*6M

Poder (kilovatios): 160

Peso: 22 toneladas

Garantía: 1 año

Factores de venta dominantes: Alto-exactitud

Industrias aplicables: Fábrica

Tipo del márketing: Producto ordinario

Saliente-inspección video: Proporcionado

Informe de prueba de la maquinaria: Proporcionado

Garantía de los componentes de la base: 1 año

Componentes de la base: Motor, PLC, Caja de cambios

Tipo: Línea redonda de la protuberancia de la fibra

Inversor: ABB

Materia prima: Escamas recicladas del animal doméstico

Control de la temperatura: OMRON

Contactor: SIEMENS

Servicio post-venta proporcionado: Soporte técnico video, recambios libres, instalación del campo, el encargar y entrenamiento, manteni

Después de servicio de garantía: Soporte técnico video, ayuda en línea, recambios, mantenimiento de campo y servicio de reparación

Ubicación local de ServiceÂ: Ninguno

Certificación: CE ISO

Información básica

Certificación: CE ISO

Pago y Envío Términos

Packaging Details: plywood package after pe film covered

Supply Ability: 10 Piece/Pieces per Month

Descripción de producto

PET Brush Broom Monofilament Yarn Making Extrusion Machine

Machine Description

PET brush broom monofilament production line consists of special design PET material dehumidifying and crystallizing system, extruder, screen changer, Melt pump, mold,
haul-off, oven, and winder, etc.

Techinical Parameters

1. With 100% bottle flakes material, or mixed with PET raw material 2. New technology, hot wind cycles to dry, increase the viscosity of the bottle flakes material;

3. Secondary stretching, increase the tensile strength and elasticity.

4. Precise and energy saving temperature control system, power saving, low noise, low input and high yield 5. Single screw extruder, low degradation compared with twin- screw extruder 6. Easy operation, convenient maintenance, the labor and the electricity cost is low

Material	PET recycled flakes /PET virgin granules
Product diameter	0.06-5.0mm
Manpower	2-4 persons/shit
Machine dimension	30-5066m
Extruder	SJ-75/33	SJ-90/33	SJ-120/33
Max output	80kg/h	150kg/h	250kg/h

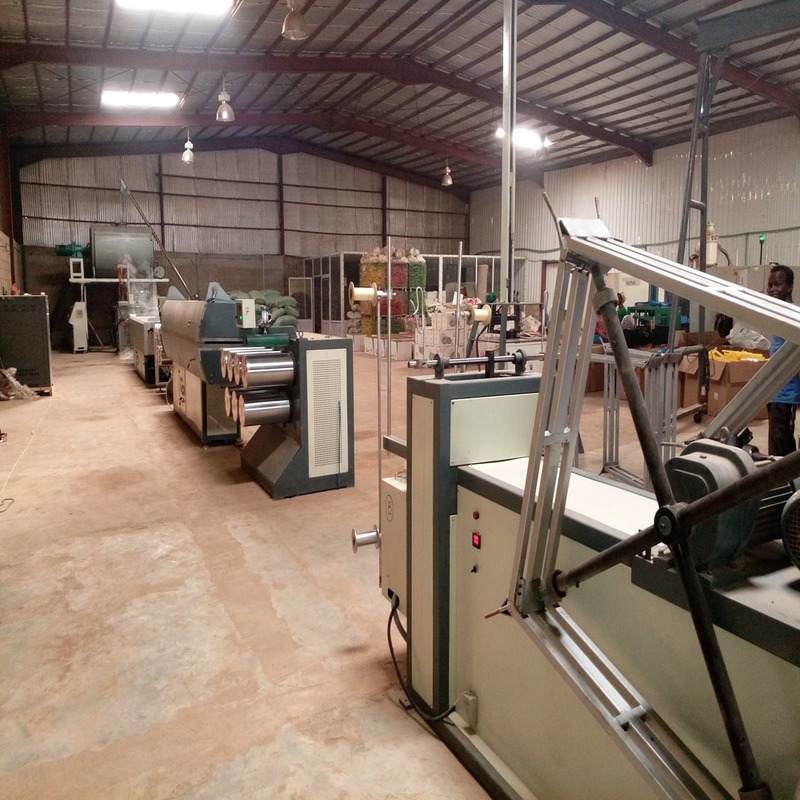

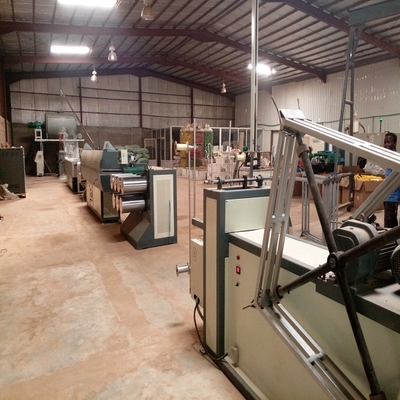

Machine Pictures & Details

brush broom monofilament production line list

No.	Name	Qt'y
1	Automatic Feeder	1 set
2	Dehumidifying and Crystallizing Unit	1 set
3	SJ-90/33 Single Screw Extruder	1 set
4	Non-stop Screen Changer	1 set
5	Melt Pump	1 set
6	Die Head	1 set
7	Quenching Bath	1 set
8	Water-suction Device	1 set
9	First Godet Rollers	1 set
10	Hot Water Oven	1 set
11	Water Heating Tank	1 set
12	Water-suction Device	1 set
13	Second Godet Rollers	1 set
14	Hot Air Oven	1 set
15	Third Godet Rollers	1 set
16	Oil Roller	1 set
17	Winder	2 sets
18	Calibration Oven	1 set
19	Packing Unit	1 set
20	Cutting Unit	1 set
21	Control System	1 set

After Sales Service

1. Pre-sale service:
To provide information, market research and forecasting, provide consultancy, offers a variety of convenience and market service and so on.
Pre-sale service's main purpose is to assist the clients prepare the project planning and system requirements analysis, enable our products to maximize meet customer needs, but also to maximize customer investment play the comprehensive economic benefits.
2. After-service
1 Free installation and debugging
2 Provide all kinds of product formula, technology and chemical material manufacturer information
3 According to the customer's requirements, provide technical guidance
4 Technical training for employees of customers
5 Responsible for maintenance service, door to door service if necessary.

Company Introduction

Qingdao Jinfuxin Plastic Machinery Co., Ltd was founded in 2002, covers an area of 15000 square meters. Our company engages in research & development, manufacturing, sales, and after-sale service of new plastic machinery.

Exhibition

FAQ

Q: Is your company factory or trade company?
A: we are factory, we are engaged in this business for 20 years, we also have our own trade company

Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely. We are Trade Assurance by Alibaba, we can make business by Trade Assurance.

Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)

Q: How about after service?

A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.

Q: How to reach our factory?
A: It will take 40 minutes from Qingdao Liuting International Airport to our factory by car, and we will arrange our driver to pick you to our factory anytime.
